(RD24) RD24 - The build continues

Published: Sat Apr 14 2012

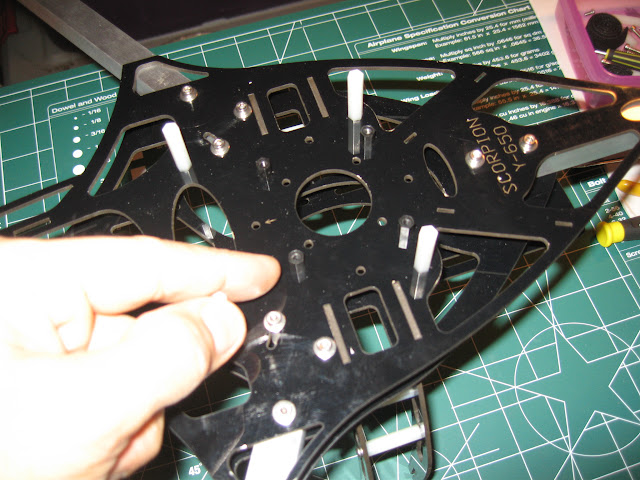

To start off this build session I had to drill 4 holes to accommodate normal mounting for my FC. The Scorpion is predisposed to KK board style mounting where the actual board is 45 degrees from center, next I used some 10mm black nylon standoffs and nylock-ed them from beneath since I would have had to disassemble the damn thing to get at a screw head from beneath so it was easier to slip the pliers and a nylock in there and then twist the standoffs down into them.

With the FC mounted we are ready for the next steps..

<p>
  I slipped 4 o-rings in the mix, though with the TMF Pro it does not need them.
</p>

<p>
  &nbsp;
</p>

<div>
  <p>
    <img alt="" src="https://lh5.googleusercontent.com/-Rq7B1POpE_k/T0lFvPjHZpI/AAAAAAAAD_U/AYrUNh4Hdb4/s640/IMG_2197.JPG" style="width: 600px; height: 450px; " />
  </p>

  <p>
    Next I CAed the nose and mounted it and prepared the next deck
  </p>

  <p>
    It is starting to look like something cool, it looks good up front, time for some motors
  </p>

  <div>
    <p>
      To start, I had not considered that my favorite motors wont work on this bird, DOH! This is due to the extra shaft sticking out of the bottom, so not one to let a pesky thing like that get in my way and knowing I have 100 extra shafts in case things did not work out, I took the motors and my dremel and cut all the shafts off.
    </p>

    <div>
      <p>
        <img alt="" src="https://lh4.googleusercontent.com/-EWVX857THPU/T0lGMxE_3tI/AAAAAAAAD_s/9djSS--FeBA/s640/IMG_2200.JPG" style="width: 600px; height: 450px; " />
      </p>

      <div>
        <p>
          Now 6 motors with shafts cut off, I soldered the bullets on
        </p>

        <p>
          The motors now have shrink tube, prop adapters, and mounting hardware installed and are ready to go on the Scorpion!
        </p>

        <p>
          <img alt="" src="https://lh5.googleusercontent.com/-iFJAGcM1CCE/T0lGqYDCVzI/AAAAAAAAEAc/tw1isSFiTEo/s512/IMG_2204.rotated.JPG" style="width: 384px; height: 512px; " />
        </p>

        <div>
          <p>
            The arms are done, But I am starting to get tired (its about 2am at this point and my pictures are starting to get blurry :p )
          </p>

          <p>
            <img alt="" src="https://lh4.googleusercontent.com/-1w7-ij59G-U/T0lG6nr8sjI/AAAAAAAAEAs/0-_tr1147JU/s640/IMG_2206.JPG" style="width: 600px; height: 450px; " />
          </p>

          <div>
            <p>
              This was supposed to show the whole model, but it only shows the legs, must be bedtime LOL.
            </p>

            <p>
              &nbsp;
            </p>

            <div>
              <p>
                <img alt="" src="https://lh3.googleusercontent.com/-1R0P5bUTnyU/T0lG-CANPxI/AAAAAAAAEA0/T01PoMHhL_4/s640/IMG_2207.JPG" style="width: 600px; height: 450px; " />
              </p>

              <p>
                And here is where we are at:
              </p>

              <p>
                &nbsp;
              </p>
            </div>
          </div>
        </div>
      </div>
    </div>
  </div>
</div>
